Ymerflow — Cloud-Native Geophysics

Browser-based AEM and magnetic survey processing, inversion, and pipeline automation — no Windows install, no per-seat licenses, no black-box algorithms.

Ymerflow replaces desktop-bound geophysics tools with a reproducible, versioned workflow platform that runs in any browser. Processing pipelines are defined as visual DAGs, executed in Kubernetes containers, and stored in per-project cloud storage so results are always reproducible. The inversion core is SimPEG (GPL v3) — peer-reviewed, auditable, and extensible.

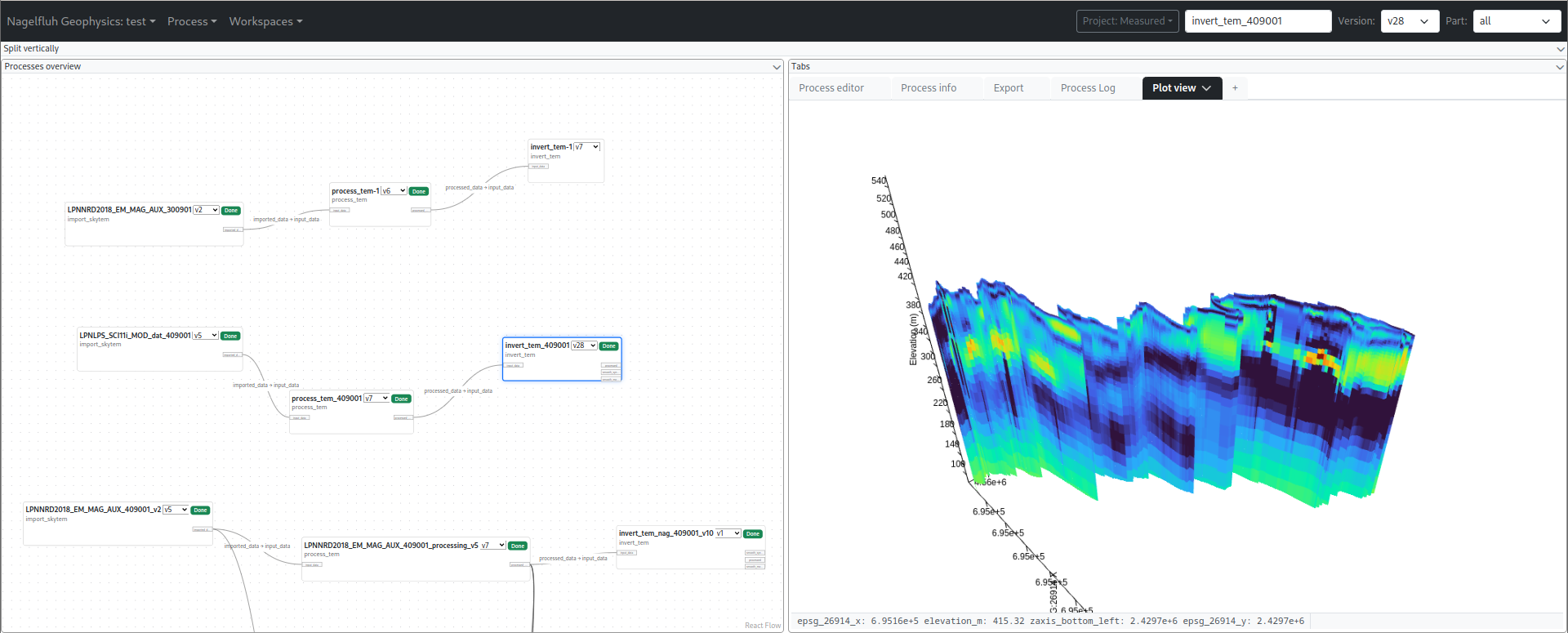

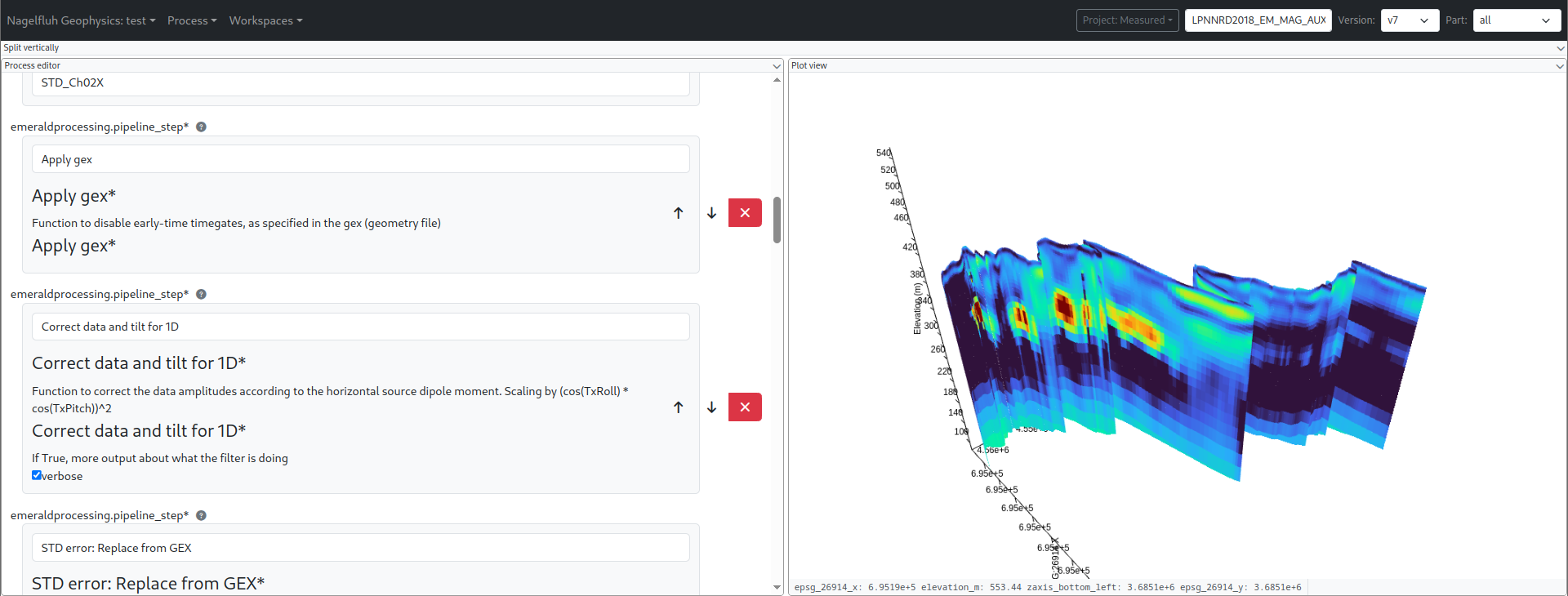

Process graph view	Process editor

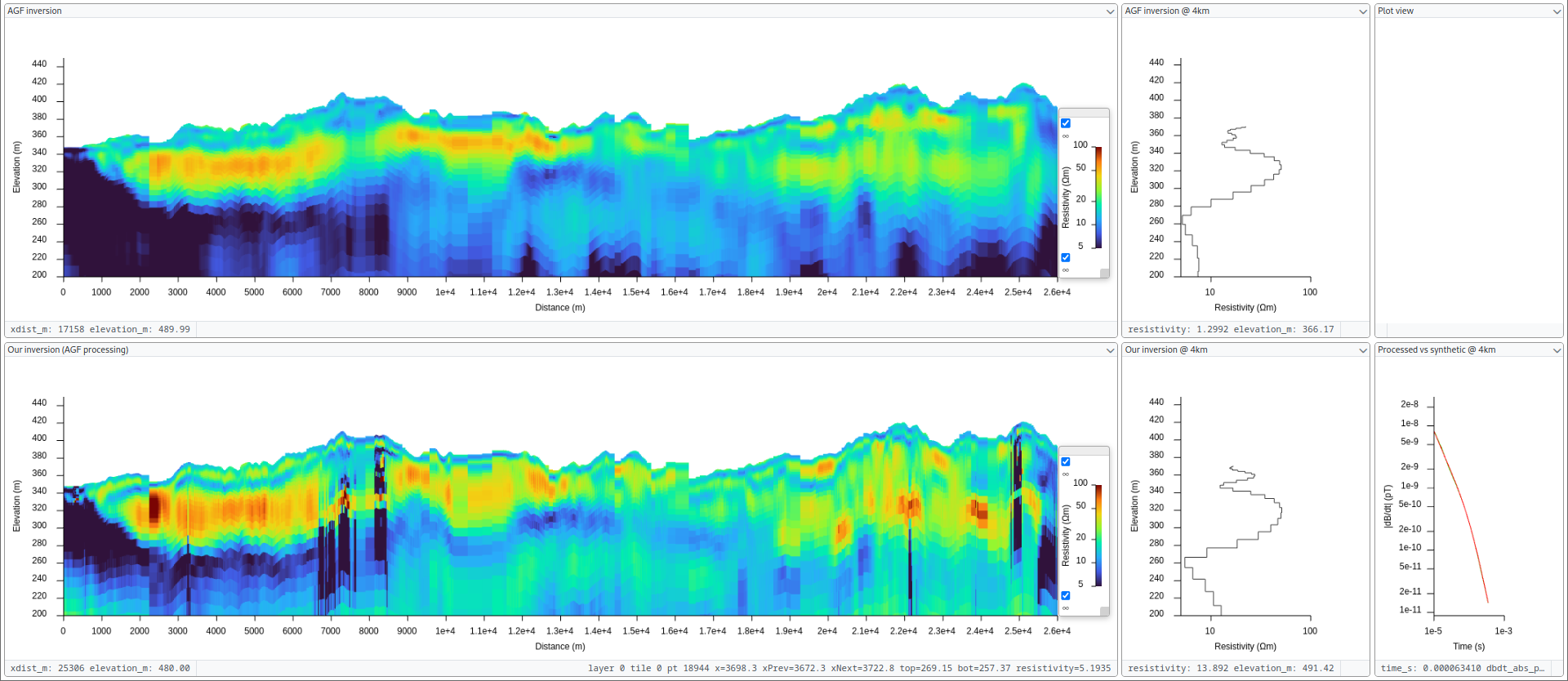

AEM inversion comparison — AGF reference (top) vs. Ymerflow result (bottom)

Features

Visual Pipeline Editor

🔀 DAG-based process graph showing dependencies and data flow
🖱️ Drag-and-drop interface with resizable splits, tabs, and popout windows for multi-monitor workflows
📡 Real-time log streaming via WebSocket
💰 Usage-based billing with upfront cost estimates per job
💾 Persistent layout configuration

Geophysics Processing & Inversion

🛜 AEM (TEM) processing and 1D/3D inversion via SimPEG — open, peer-reviewed algorithms
🧲 Magnetic processing, equivalent-source gridding, and 3D magnetic inversion
🔌 Plugin process types: any Python schema() + run() pair registers as a new process type, so custom algorithms slot in without forking the platform

Scientific Visualization

🗻 3D resistivity curtains along flightlines and voxel grids for 3D inversion results
🌐 Geographic map view with EPSG coordinate axes and flightline plotting
📊 Extensible plot element system with unit-aware axis matching

Kubernetes-Based Compute

📦 Containerized process execution with per-job resource limits (CPU, memory, deadline)
⚙️ Kueue job queuing for fair cluster scheduling and efficiency
🔄 Automatic cleanup and retry logic
📈 Scales to large surveys without manual infrastructure management

Storage

🔐 Per-project S3/GCS-compatible object storage with scoped credentials and IAM security
🏷️ Versioned outputs — every pipeline run is reproducible
☁️ MinIO for local development, GCS/S3 in production
⚡ Automatic bucket provisioning

Getting Started

See the Quickstart Guide to go from zero to a running system in minutes, or the Deployment Guide for production-minikube mode, admin tools, and cloud deployment and the User Guide for full coverage of the interface, datasets, billing, and troubleshooting.

Documentation

Ymerflow uses a distributed architecture with browser-based UI, FastAPI backend, and Kubernetes for process execution:

Frontend (React) → Backend (FastAPI) → Kubernetes Cluster
                                       ├─> Kueue → Job → Pod (process execution)
                                       ├─> Log streaming via WebSocket
                                       └─> MinIO (development) / GCS/S3 (production)
                                           └─> Per-project buckets with IAM

Architecture

System Overview - Backend/frontend components, data flow, Kubernetes resources
Technology Stack - Complete list of technologies, libraries, and tools
Environment - Docker images, entrypoints, runner, schema extraction
Process Types - Creating custom process types, schemas, registration
Storage - Per-project buckets, security model, fsspec usage

Frontend

Widget System - Creating widgets, built-in widgets, plot elements
Layout System - Flexout drag-and-drop, splits, tabs, popouts
JSON Schema Forms - Custom forms, dataset selector, validation

Operations

Deployment Guide - Development and production setup, Minikube, MinIO, cloud deployment
Development Guide - Development workflows, testing, debugging, contributing

Contributing

See Development Guide for development workflows, testing, and contribution guidelines.

For guidance when working with Claude Code, see CLAUDE.md.
